Green Color Straight PVC Flights With Different Height T30 T40 T70 T80 T90 T100

Place of Origin : China

MOQ : 1 meter or 1 pcs

Payment Terms : T/T; LC,etc

Delivery Time : within 15-20 days

Packaging Details : Wrapped with stretched film & Packed in pallets

Color : green

Material : PVC or PU

Cleat Type : T shape

Application : Conveyor systems

Contact Now

Green Color Straight PVC Flights with Different Height

Description

Inclined conveyors occasionally require belts with profiles or cleats (flights) on the carrying surface.

These prevent slippage of the conveyed material and increases the belt capacity.

The type and height of the most suitable cleat (flight) is determined according to the characteristics of the conyeved material and the inclination of the conveyor. Optimum conveying capacity can be achieved up to angles of 70º by this means.

CONVEYOR BELT PROCESSING ACCESSORIES

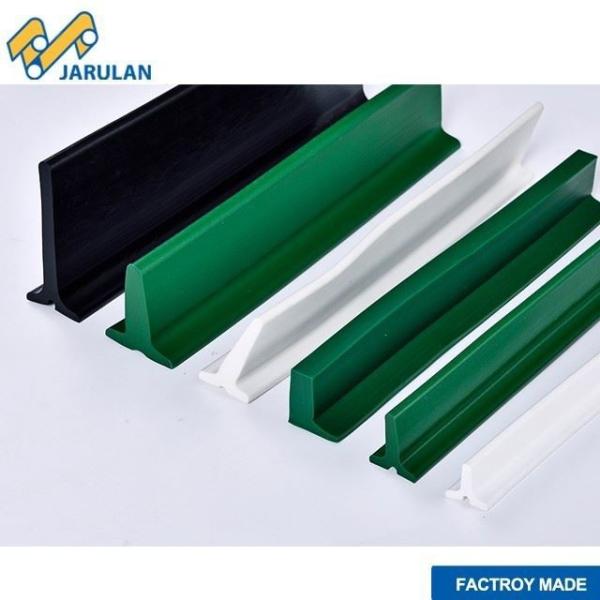

STRAIGHT SHAPE CONVEYOR BELT CLEAT (FLIGHT) WITH DIFFERENT HEIGHT WITH OR WITHOUT THE BOTTOM BASE

Green Color Straight PVC Flights With Different Height T30 T40 T70 T80 T90 T100

JARULAN is able to provide cleats and guides with FDA food grade standard to meet the food industry requirement.

BASIC PARAMETERS

MATERIAL	TYPE	Color	Temperature (℃)	Min. Turning Diameter (mm)
PVC	T10	white/green/blue/black white/green/blue/black	-10/+70	40
PVC	T20		-10/+70	90
PVC	T30		-10/+70	120
PVC	T40		-10/+70	120
PVC	T50		-10/+70	120
PVC	T60		-10/+70	150
PVC	T70		-10/+70	160
PVC	T80		-10/+70	180
PVC	W35		-10/+70	130
PVC	X50		-10/+70	150
PVC	X60		-10/+70	150
PVC	X70		-10/+70	180
PU	T20		-20/+80	60
PU	T30		-20/+80	60
PU	T40		-20/+80	60
PU	T60		-20/+80	80
PU	Z120		-20/+80	300
PU	Z120		-20/+80	300
PU	Z120		-20/+80	300

Other specifications can produce according to clients.
