CONVEYOR BELT PROCESSING ACCESSORIES
The conveyer belt guide/ conveyor belt profile is a PVC or PU material profile with positioning and guiding functions. Its main purpose is to ensure that the conveyor belt runs accurately when it is running on the conveyor, and it can also be used as a material positioning on the bearing surface of the conveyor belt.
There are two main functions of the conveyor belt guide:
1) to prevent the conveyor belt from running off;
2) to use it as a positioning on the bearing surface.
| CODE | Sizes B* H (mm) | Height (mm) | Bottom Width (mm) | Color | Material | Hardness (shore A) | Min. Pulley Diameter (mm) |
| Front Side | Back Side |
| K6 | 6*4 | 4 | 6 | white/green/blue/black | PVC/PU | 60/65 | 40 | 30 |
| K8 | 8*5 | 5 | 8 | white/green/blue/black | PVC/PU | 60/65 | 50 | 40 |
| K10 | 10*6 | 6 | 10 | white/green/blue/black | PVC/PU | 60/65 | 70 | 60 |
| K13 | 13*8 | 8 | 13 | white/green/blue/black | PVC/PU | 60/65 | 100 | 80 |
| K17 | 17*11 | 11 | 17 | white/green/blue/black | PVC | 60/65 | 110 | 90 |
| K22 | 22*14 | 14 | 22 | white/green/blue/black | PVC | 60/65 | 180 | 130 |
| K30 | 30*17 | 17 | 30 | white/green/blue/black | PVC | 60/65 | 200 | 150 |
| R5 | 5*5 | 5 | 5 | white/green/blue/black | PVC | 60/65 | 50 | 40 |
| S10 | 10*10 | 10 | 10 | white/green/blue/black | PVC | 60/65 | 150 | 70 |
| S15 | 15*15 | 15 | 15 | white/green/blue/black | PVC | 60/65 | 200 | 90 |
| S20 | 20*20 | 20 | 20 | white/green/blue/black | PVC | 60/65 | 250 | 130 |
| Remarks | Other specifications can produce according to clients. |
- CROSS SECTION OF PVC/PU CONVEYOR BELT GUIDES
Jarulan is able to customize special conveyor belts according to our customers’ special application environment.

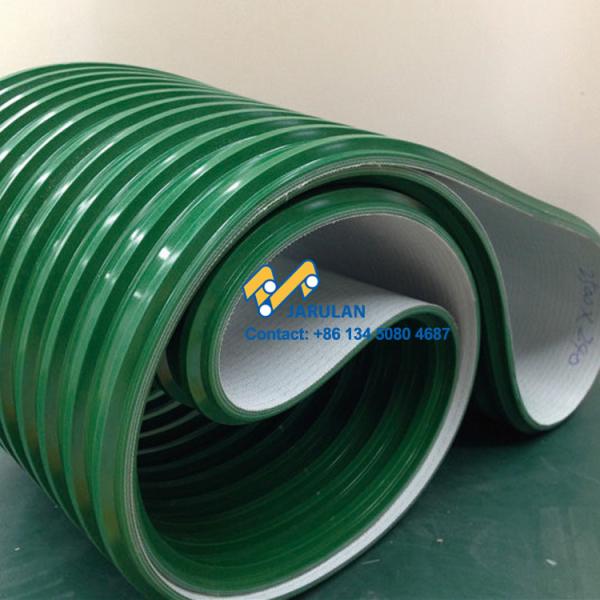

--Surface and bottom processing: cleats, sidewall, guide and turning belts welding on the surface of conveyor belts are available. Sponge, red rubber and green rubber added on the surface can be provided as well.
--Punching holes: we can punch holes like round hole, square hole, long shape hole and any other special shapes of hole on the belt.
- DIMENSIONS OF CONVEYOR BELT GUIDES
| Guide Type | Guide dimensions (mm) | Length per roll (m) |
| K6 | 6*4 | 300 |
| K8 | 8*5 | 300 |
| K10 | 10*6 | 300 |

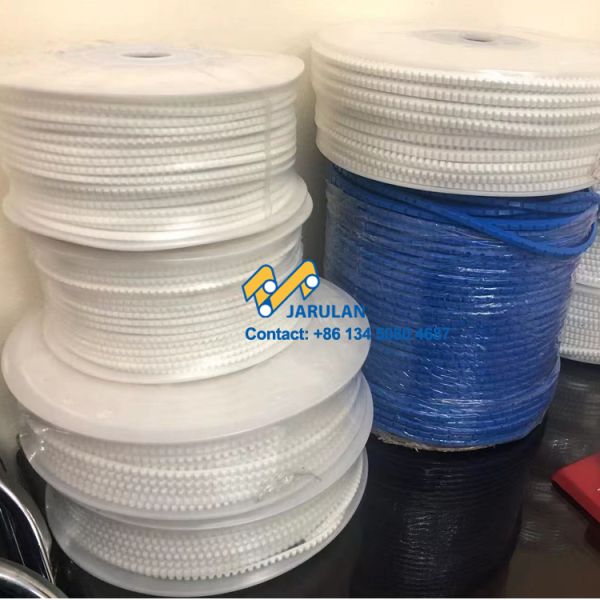

| K13 | 13*8 | 200 |
| K17 | 17*11 | 100 |
