Food Grade Double Side PVC Fabric Conveyor Belt 1.8mm For Dough Sheeter

Place of Origin : China

Packaging Details : Wrapped with stretched film & Packed in pallets

Delivery Time : within 15-20 days

Payment Terms : T/T; LC,etc

MOQ : 1 square meter

Type : PU conveyor belt

Material : Polyurethane

Pattern : Glossy or Matt, special patterns are vailable

Quality : FDA/EU Approved

Thickness : 0.5mm-6mm

Temperature Range : -35℃ to 80℃

Color : white/blue/black, etc

Standard Width : 2000mm/3000mm

Application : Food conveying

Contact Now

Food belt Double-side fabric 1.8mm Conveyor Belt for Dough Sheeter

Description

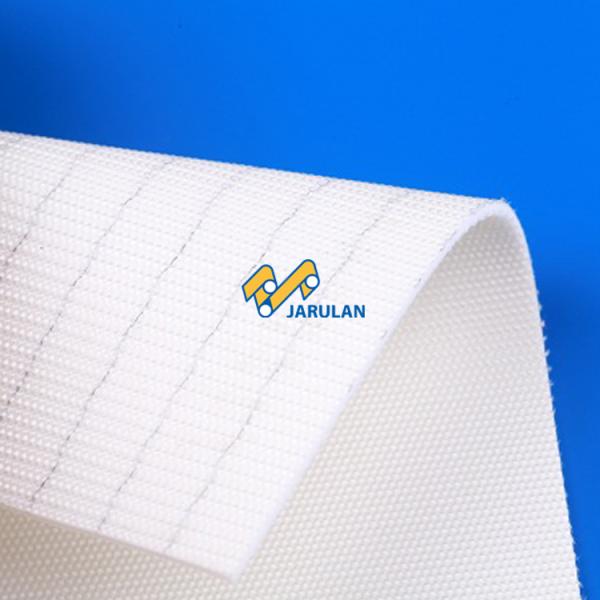

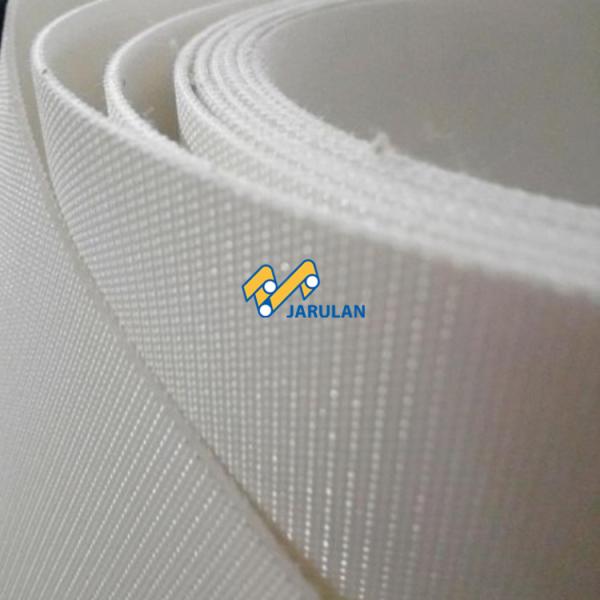

Product name: double-side fabric PVC conveyor belt

Material: fabric, PVC

Thickness: 1.8mm

Application: food industry, bread factories

Food Grade Double Side PVC Fabric Conveyor Belt 1.8mm For Dough Sheeter

Technical Data Sheet

Belt data
Color	white
Tension Member	Polyester Fabric
Fabric layer(s)	2 EM
Total Thickness	1.8 mm	0.071 inch
Weight approx.	2.1 kg/m²	0.430 lb/ft²
Standard width	2000 mm	78.7 inch
Maximum width	3000 mm	118.1 inch
Top side
Material	FABRIC	white
Thickness		mm	inch
Hardness	Shore hardness
Middle side
Material	FABRIC	white
Bottom side
Material	Polyester Fabric
Thickness	0 mm		inch
Hardness	Shore hardness
Belt characteristics
Force at 1% elongation	8 N/mm	44.8 lbs/ins
Laterally	stable
Noise level	(not applicable if blank)
Ambient temperature	-10 °C	14 °F
	80 °C	176 °F
Max. temperature short	-15 °C	5 °F
	100 °C	212 °F

Oil resistance and food grade are available. Jarulan is able to produce the PVC Conveyor belt according to your standard.

Jarulan PU and PVC conveyor belts have been approved by certification of EC 1935/2004, EC 2023/2006, EU 10/2011 and FDA food grade. We are experienced in producing different quality levels of products. Not like other companies are just provided products with prices, we are good at offering conveyor belt solutions, development and customization.

Our double-side fabric 1.8mm thickness PVC conveyor belt is the best choice for dough sheeter application.

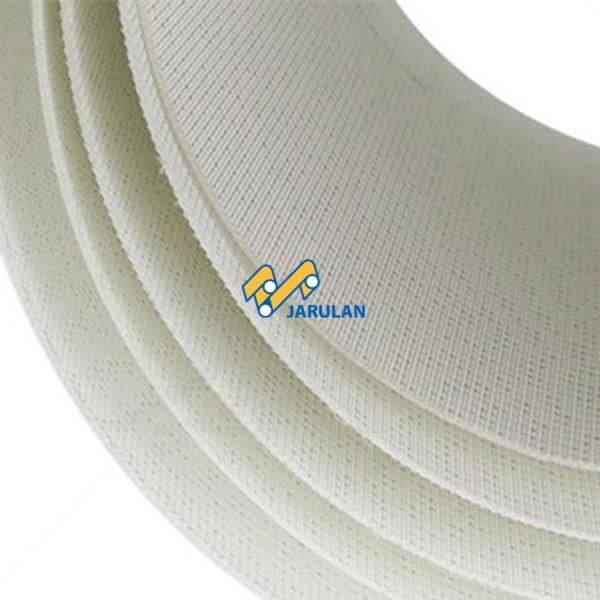

If you have higher food grade requirement for it, we suggest our 1.3mm PU conveyor belt with double-side fabric will meet your need.

Please contact us for further information.

All series of conveyor belts are available from JARULAN.
