Description

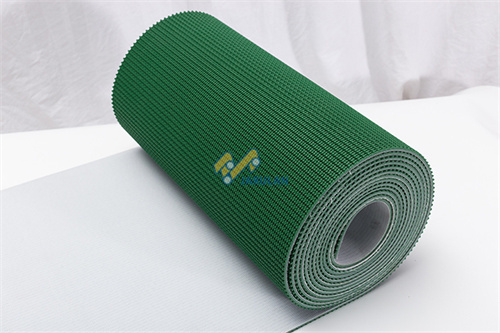

Very Good Anti-slip Performance Rough Pattern PVC Conveyor Belt
For AIR PORT AND LOGISTICS INDUSTRY
Flame resistance,wear resistance,anti static are the characteristics of airport and postal logistics industrial belts.We are specialized in turning conveyor belt,swing belt,baggage carrying belt,timing belt etc. They're widely used in inspection and sorting system for airport,parcel,logistic,supermarket and warehouse distribution.
PRODUCT ADVANTAGES:
- With a variety of specifications; manufacturing or processing according to the specific application of environmental production is available.
- Stable quality of dimensions; can be applied to changing temperature environment.
- Low noise characteristics improve the transport environment.
TECHNICAL DATA OF RECOMMENDATION:
The following recommendation is just for standard reference.As conveying and processing systems are diverse and complex, we can customize solutions according to our customers' exact application situations.
| Code | Thickness | Material | Surface | Bottom | Color | Plies | 1% Extension stress
(N/mm) | Weight
(kg/㎡) | Min. roller diameter
(mm) | Temperature range
(℃) | Standard Production width
(mm) | Special properties |
|---|
| PVC4/8RF2BK-FR | 4.8 | PVC | rough | fabric | black | 2 | 12 | 5.4 | 100 | -10~+80 | 2000/3000 | Flame resistance/ Low noise |
| PVC4/8RF2DG | 4.8 | PVC | rough | fabric | deep green | 2 | 12 | 5.4 | 100 | -10~+80 | 2000/3000 |
|
| PVC5/2RF2G | 5.2 | PVC | rough | fabric | green | 2 | 8 | 4.3 | 40 | -15~+80 | 2000/3000 |
|
| PVC5/2RF2BK | 5.2 | PVC | rough | fabric | black | 2 | 8 | 4.6 | 50 | -10~+80 | 2000/3000 | Flame resistance/ Low noise |
| PVC5/2RF2DG | 5.2 | PVC | rough | fabric | deep green | 2 | 8 | 4.6 | 50 | -10~+80 | 2000/3000 |
|
| PVC5/5RF2LB AS | 5.5 | PVC | rough | fabric | light blue | 2 | 8 | 4.8 | 60 | -10~+80 | 2000/3000 |
|
| PVC5/5RF2PB AS | 5.5 | PVC | rough | fabric | petrol blue | 2 | 8 | 4.8 | 60 | -10~+80 | 2000/3000 |
|
| PVC5/5RF2PG AS | 5.5 | PVC | rough | fabric | petrol green | 2 | 8 | 4.8 | 60 | -10~+80 | 2000/3000 |
|
| PVC5/5RF2LB AS | 5.0 | PVC | rough | fabric | petrol blue | 2 | 8 | 4.5 | 55 | -10~+80 | 2000/3000 |
|
We can manufacture max. width of 3500mm.
PRODUCT DETAIL:
Other related products for logistics and airport application:
| Code | Thickness | Material | Surface | Bottom | Color | Plies | 1% Extension stress
(N/mm) | Weight
(kg/㎡) | Min. roller diameter
(mm) | Temperature range
(℃) | Standard Production width
(mm) | Special properties |
|---|
| PVC2/5MF2BK | 2.50 | PVC | matt | fabric | black | 2 | 10 | 3.0 | 50 | -10~+80 | 2000/3000 |
|
| PVC2/8LF2BK-FR | 2.80 | PVC | longitudinal groove | fabric | black | 2 | 10 | 3.2 | 60 | -10~+80 | 2000/3000 | Flame resistance/ Low noise |
| PVC5SF3G | 5.00 | PVC | smooth | fabric | green | 3 | 13 | 5.4 | 100 | -10~+80 | 2000/3000 |
|
| PVC5SF3BK | 5.00 | PVC | smooth | fabric | black | 3 | 13 | 5.4 | 100 | -10~+80 | 2000/3000 |
|
| PVC5SF3W | 5.00 | PVC | smooth | fabric | white | 3 | 13 | 5.4 | 100 | -10~+80 | 2000/3000 |
|
| PVK120 | 3.00 | PVK |
|
| black | 2 | 14 | 3.3 | 60 | -10~+80 | 2000/3000 |
|
| PVK125 | 4.00 | PVK |
|
| black | 2 | 25 | 4.2 | 100 | -10~+80 | 2000/3000 |
|
| PVK150 | 4.80 | PVK |
|
| black | 2 | 25 | 5.0 | 120 | -10~+80 | 2000/3000 |
|
As an experienced manufacturer of PVC and PU conveyor belt, JARULAN is able to produce the conveyor belts according to customers' requirement with high quality output.
Thickness, pattern, fabric layers, fabric type, materials of the conveyor belts are available to customize. We could make exactly the same as your provided technical data sheet as well.
