Description
Jarulan is able to provide simple type sugar belt and high standard quality sugar belt. Please consulte us for more details. We could offer professional suggestions according to your application needs.
In the previous sugar belt transporation application, white rubber conveyor belt acted an very important role. But after PVC material sugar belt is introduced to this application area as a replacement of white rubber conveyor belt, PVC sugar belt plays a more and more significant role in sugar factories.
PVC material has the strength that it permits more specific and efficient formulations than rubber, and not like rubber, it is odorless and no fragments with friction during application, perfectly matching the special requirements of the industry.
The characteristics of our high standard PVC sugar conveyor belt:
- Food grade (FDA & EU approved)
- Oil resistant
- Flame retardant (in accordance with ISO 340:2013)(raw material is imported from Ameria)
- ATEX (according Category 2 - KEMA 05ATEX2164 U)
- Antistatic (in accordance with ISO 21178)

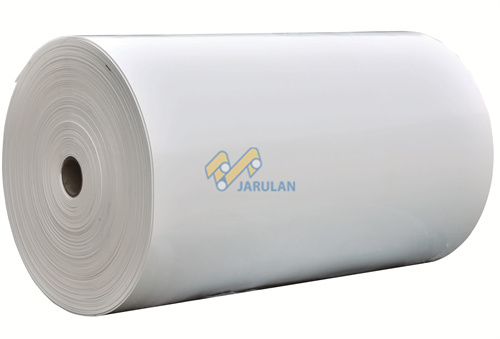

Please find our 9.6mm thickness PVC sugar belt technical data as below:
Product name: PVC sugar belt (trough)
Product code: Flexible EF 60/3 10+30 white AS FR CR FG ATEX
| Fabric layer | polyester fabric | flexible type | 3 plies |
| top cover | flexible PVC 3.0mm thick. | smooth | white |
| bottom cover | flexible PVC 1.0mm thick. | smooth | white |
| Thickness | 9.6mm |
| Force at 1% elongation | 60N/mm |
| Hardness | 75 A shore |
| Weight | 11.9kg/sqm |
| Application | sugar bucket elevator/storage silo discharge of dry sugar/centrifugal discharge of humid sugar, etc. |
Jarulan deeply knows how sugar factories work and how important the food safety is, so we use high standard raw materials to make sure all the coming-out products are perfect.
We are also producing 5.0mm/6.0mm/7.4mm/9.6mm etc. thickness PVC sugar conveyor belt. Please contact us for more detials.
If our high tensile strength 9.6mm thickness sugar belt for bucket elevator caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
